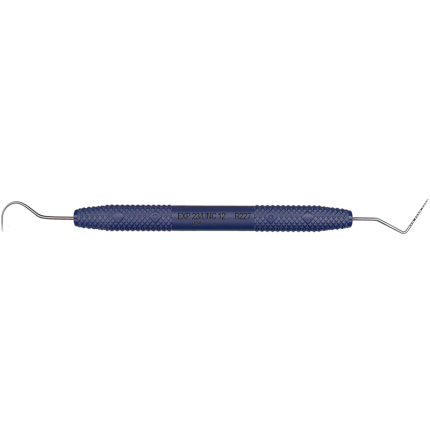

The PDT™ ACE™ Explorer 23 / Williams Probe (R224) is a premium double-ended diagnostic dental instrument that combines a #23 Shepherd’s Hook Explorer with a Williams periodontal probe. Designed by Paradise Dental Technologies, this instrument features PDT’s signature ultralight solid resin handle, significantly reducing hand fatigue and helping minimize the risk of repetitive strain injuries.
Both working ends are manufactured from cryogenically treated 440A stainless steel, providing superior durability and long-lasting sharpness. The Williams probe end is clearly marked at 1-2-3-5-7-8-9-10 mm, allowing for accurate and reliable periodontal pocket measurements during routine examinations.
Identification
-
Product Identifier: Explorer 23 / Williams Probe
-
Product Code: R224
-
Brand: Paradise Dental Technologies (PDT)
-
Handle Type: Solid Resin (Pacific Blue / Color-Coded)
-
Tip Material: Cryogenically Treated 440A Stainless Steel
-
Probe Markings: 1-2-3-5-7-8-9-10 mm
-
Type: Double-Ended Diagnostic Dental Instrument
Key Benefits
-
Ergonomic Design: Lightweight, large-diameter resin handle reduces pinch force and muscle strain
-
Exceptional Tactile Sensitivity: Solid resin construction enhances vibration transmission for calculus detection
-
Long-Lasting Sharpness: Cryogenic steel treatment extends tip life and performance
-
Secure Grip: Knurled handle pattern ensures control even with wet or gloved hands
-
Clinical Efficiency: Combines two essential diagnostic tools into one instrument
Applications
-

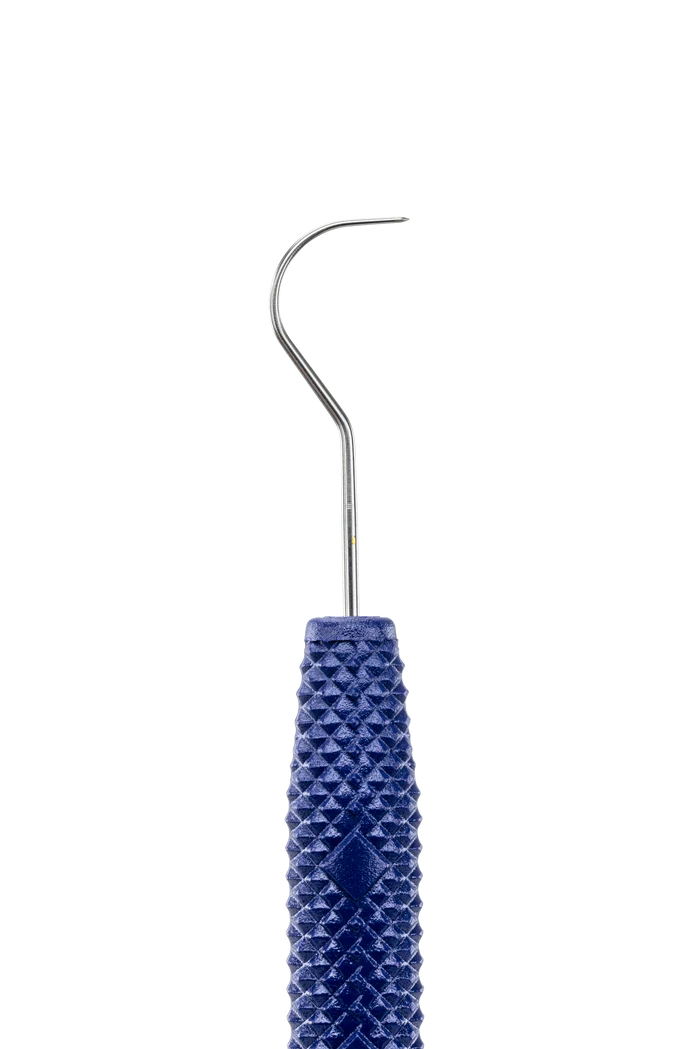

Caries Detection (Explorer #23 End)
-
Calculus and Surface Irregularity Detection
-

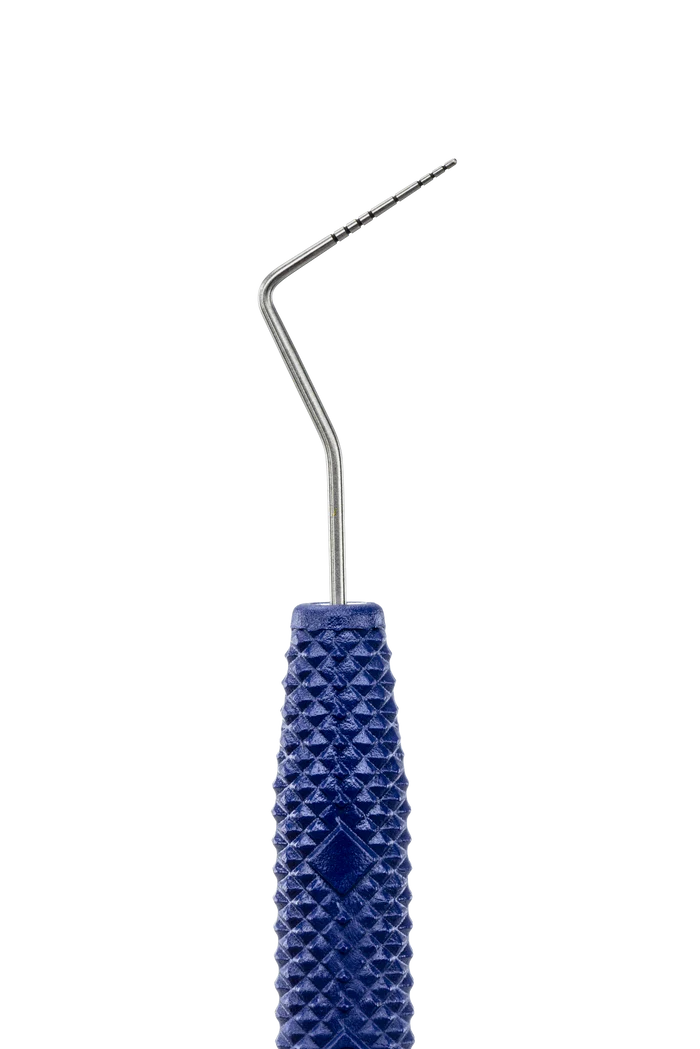

Periodontal Probing and Pocket Depth Measurement (Williams End)
-
Routine Dental and Hygiene Examinations
Usage Guidelines
-
Sizing: Standard dental instrument
-
Storage: Store in a sterilization cassette or pouch
-
Disposal: Sharps (if broken) or recycling program where available
-
Usage:
-
Use the #23 explorer to detect caries and surface irregularities
-
Use the Williams probe to gently measure periodontal pocket depths
-
Follow standard infection control and sterilization protocols
-
Certifications, Safety Standards, and Regulatory Approvals
-
Country of Origin: Made in USA
-
CE Marked: Yes
-
Sterilization: Steam Autoclave Compatible
Comparison with Competitor Products
PDT™ instruments are widely recognized for their lightweight design and superior tactile sensitivity, typically weighing significantly less than traditional metal-handle instruments. Compared to heavier alternatives, the cryogenically treated steel also maintains sharpness longer, reducing the need for frequent replacement.
Typical User Profile and Application Scenarios
-
Dental Hygienists
-
Dentists
Best Practices for Use and Maintenance
-
Do not sharpen the probe end to preserve accurate millimeter markings
-
Clean using an ultrasonic cleaner prior to autoclaving
-
Avoid abrasive wire brushes on the resin handle to prevent surface damage
