Description

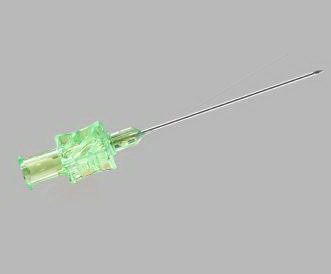

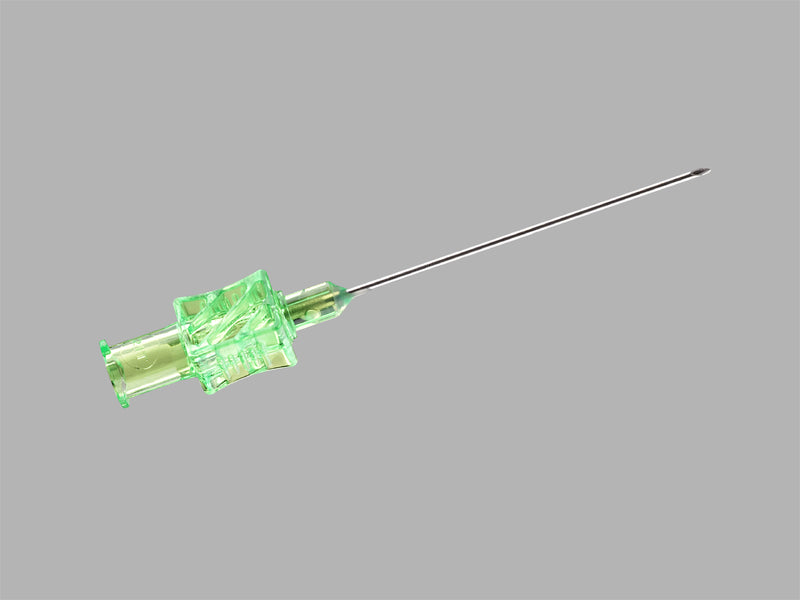

The Cook Medical One-Part Percutaneous Entry Needle (SKU: G00166, model: SDN-18-7.0) is a high-precision, thin-wall needle designed for initial percutaneous vein puncture. Featuring an 18 gauge diameter and 7 cm length, this single-part needle is equipped with a standard Luer Lock hub for secure connection to syringes or extension sets. It is widely used in interventional radiology and vascular access procedures where reliable vessel entry is critical.
Identification
Product Name: One-Part Percutaneous Entry Needle
Product Code: G00166
Model Number: SDN-18-7.0
Brand: Cook Medical
Gauge: 18G
Length: 7 cm
Wall Type: Thinwall
Hub Type: Luer lock (standard)
Material: Stainless steel
Packaging: Single use, sterile
Key Benefits
-
Precision entry: The sharp, beveled tip allows for smooth tissue penetration and accurate vessel entry.
-
Thinwall design: Maximizes the internal diameter for better flow rates and guide wire passage compared to standard wall needles.
-
Secure connection: Standard Luer lock hub ensures a tight, leak-free connection.
-
Visibility: The hub design allows for immediate visualization of blood flashback upon vessel entry.
Applications
-
Vascular access: Initial entry for angiographic procedures.
-
Interventional radiology: Percutaneous access for catheter placement.
-
Guidewire insertion: Facilitates the introduction of guide wires up to .038" (typically).
Usage Guidelines
-
Preparation: Ensure the insertion site is sterilized and draped.
-
Insertion: Advance the needle into the vessel until flashback is observed.
-
Wire placement: Insert the guide wire through the needle lumen carefully.
-
Removal: Withdraw the needle while maintaining guide wire position.
Certifications, Safety Standards, and Regulatory Approvals
-
Sterility: Ethylene oxide (EtO) sterilized.
-
Single use only: Disposable to prevent cross-contamination.
Comparison with Competitor Products
Compared to two-part or cannula-over-needle systems, the one-part needle offers direct feedback and simplicity. Its thinwall construction is a key differentiator, allowing for a larger inner lumen without increasing the outer profile, which is beneficial for patient comfort and procedure efficiency.
Typical User Profile and Application Scenarios
-
Interventional radiologists: Performing angiograms or placing central lines.
-
Vascular surgeons: Establishing access for endovascular procedures.
Best Practices for Use and Maintenance
-
Storage: Store in a cool, dry place away from direct sunlight.
-
Inspection: Verify package integrity before use; do not use if opened or damaged.
